ADDi Module: Automated Dynamic Diagnostic Interface

Dynamic gasoline direct inject and diesel high-pressure fuel systems analysis and much more!

Provides high-end functionality for even the most basic scopes: from Hantek to Pico

DIAGNOSTICS SIMPLIFIED

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • 2017 Ford 1.5 ecoboost Dynamic Injector flow test

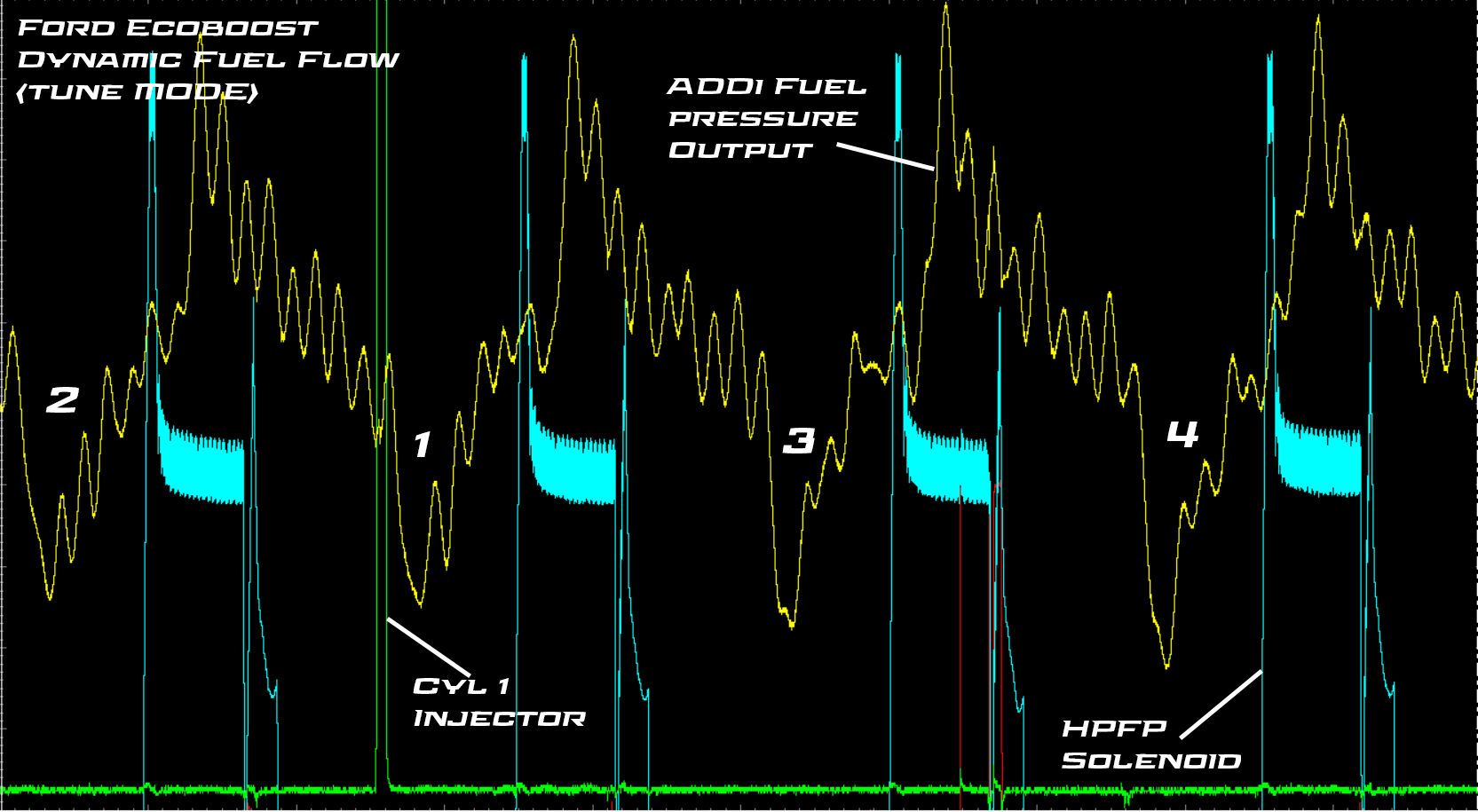

    Good ADDi Dynamic injector test 1.5 Ford ecoboost

    Button

  • Known Good








    Good 2.4l Huyndai Santa Fe dynamic injector flow test under heavy load with converter locked.

    Button

  • Slide title

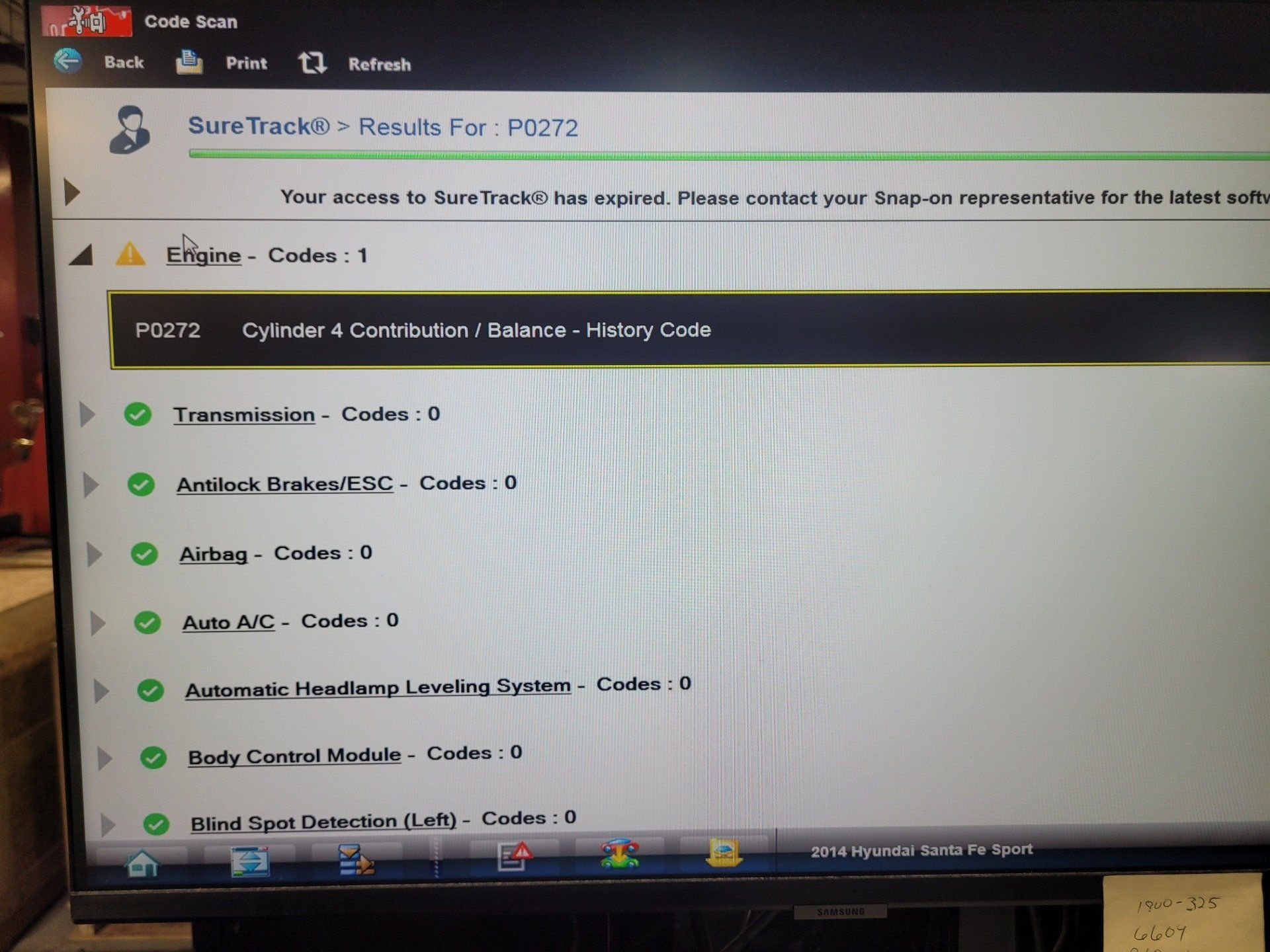

    P0272 Cylinder 4 Fuel Trim Imbalance DTC

    Button

  • DTCs from previous slide

    Write your caption here
    Button

  • 2014 Hyundai Santa Fe

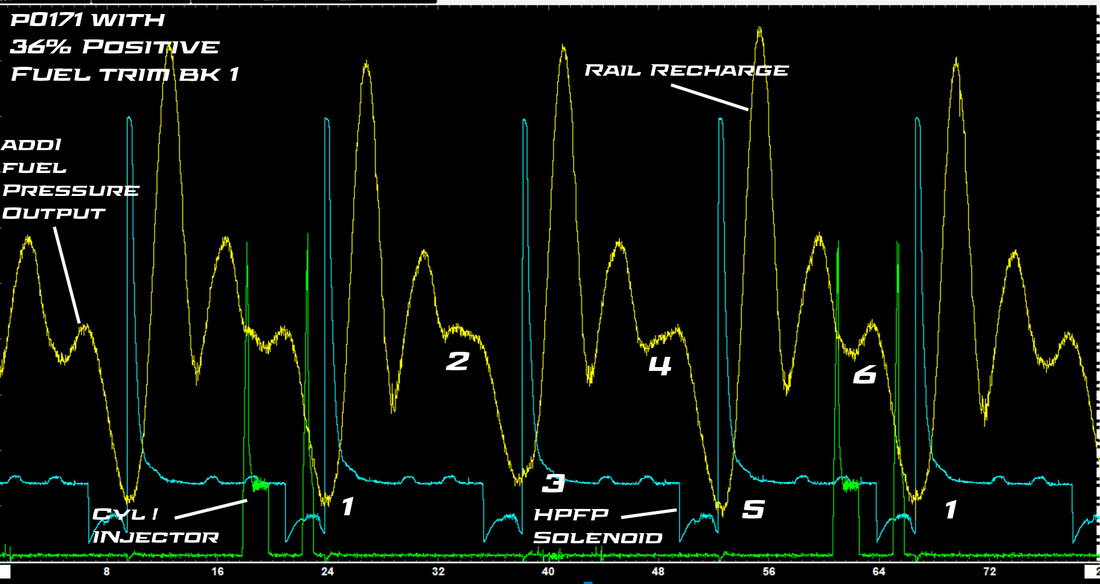

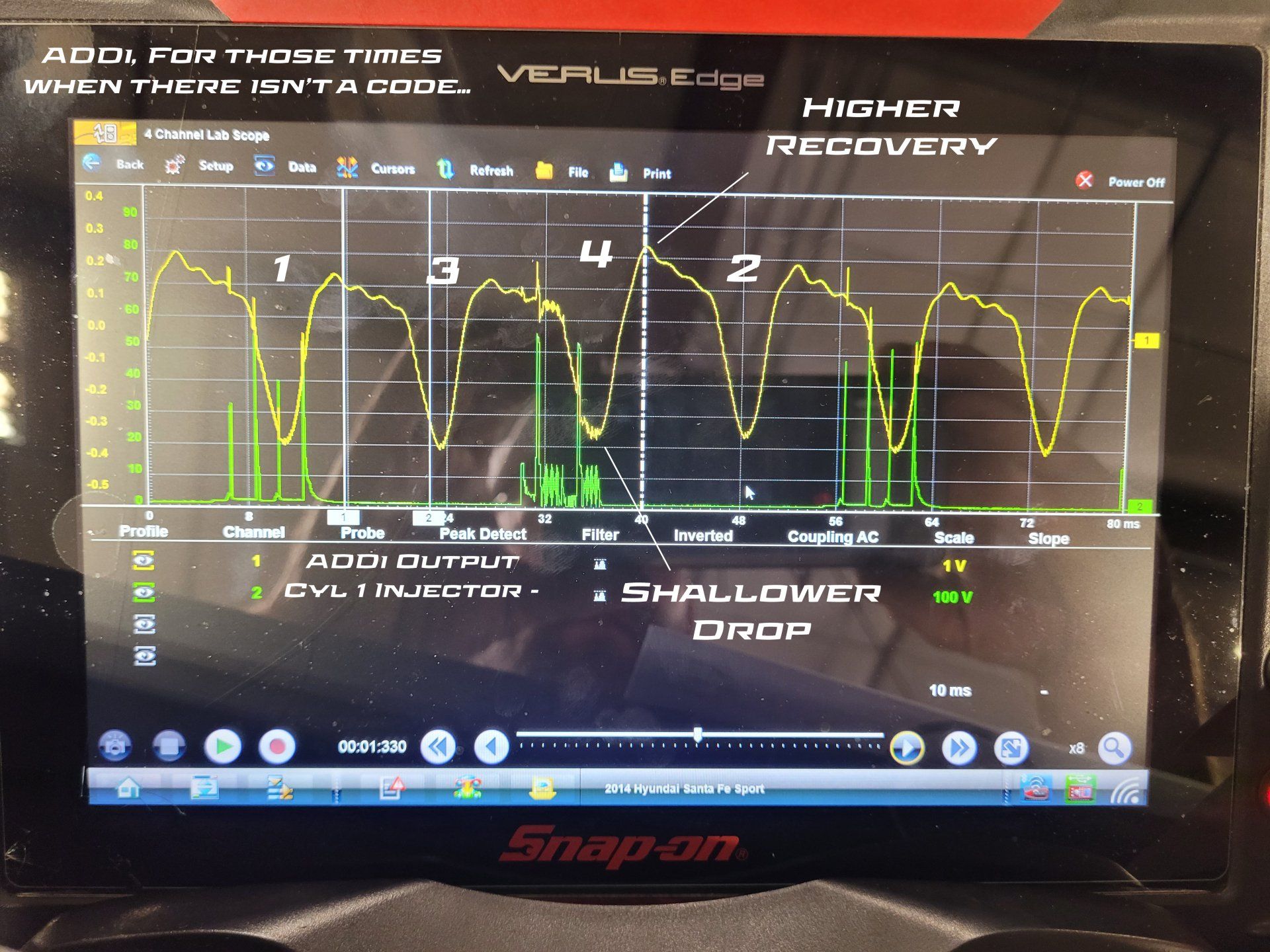

    ADDi showing 36% positive fuel trim on bank 1, 2014 Hyundai Sante Fe (Bank 2 intake cam timing was 15% slow)

    Button

  • 19 Hyundai Accent

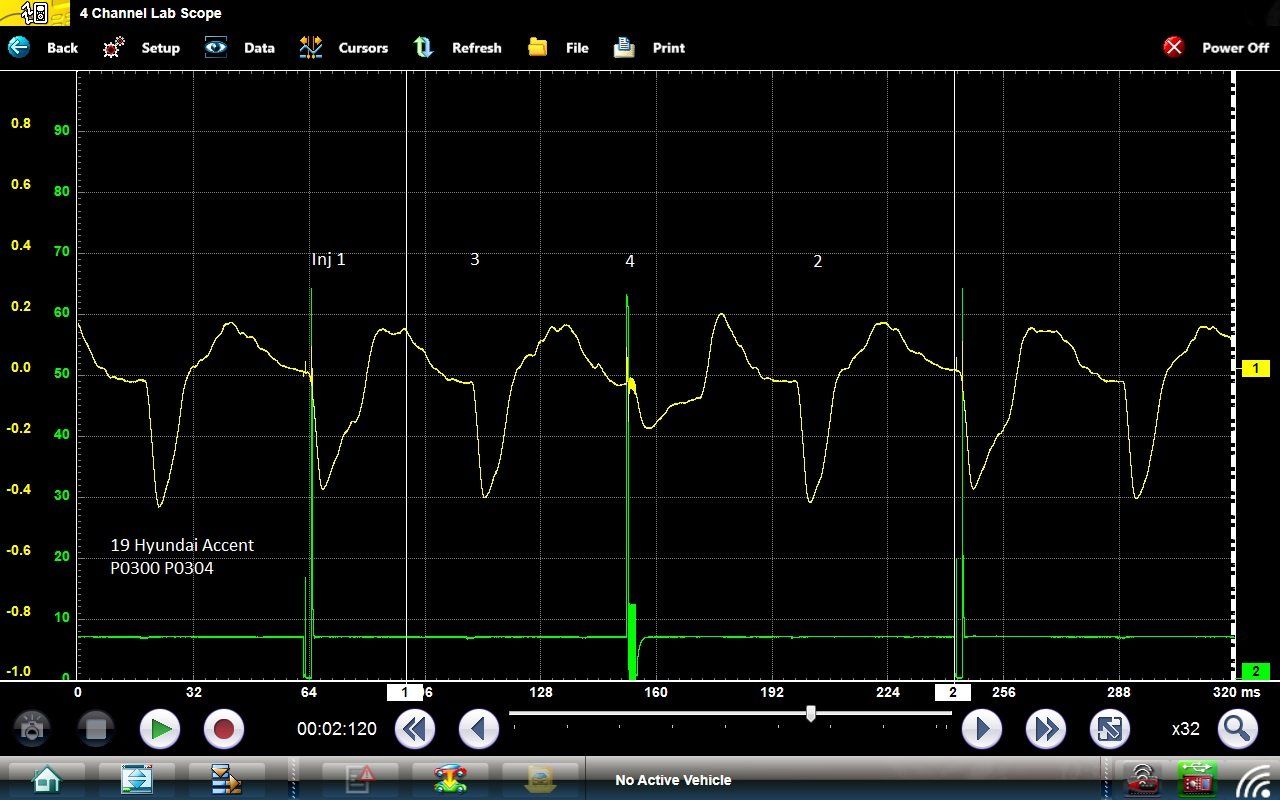

    P0304 dymanic injector flow test, cylinder 4 injector faulty

    Button

  • 2017 Chevy Cruz

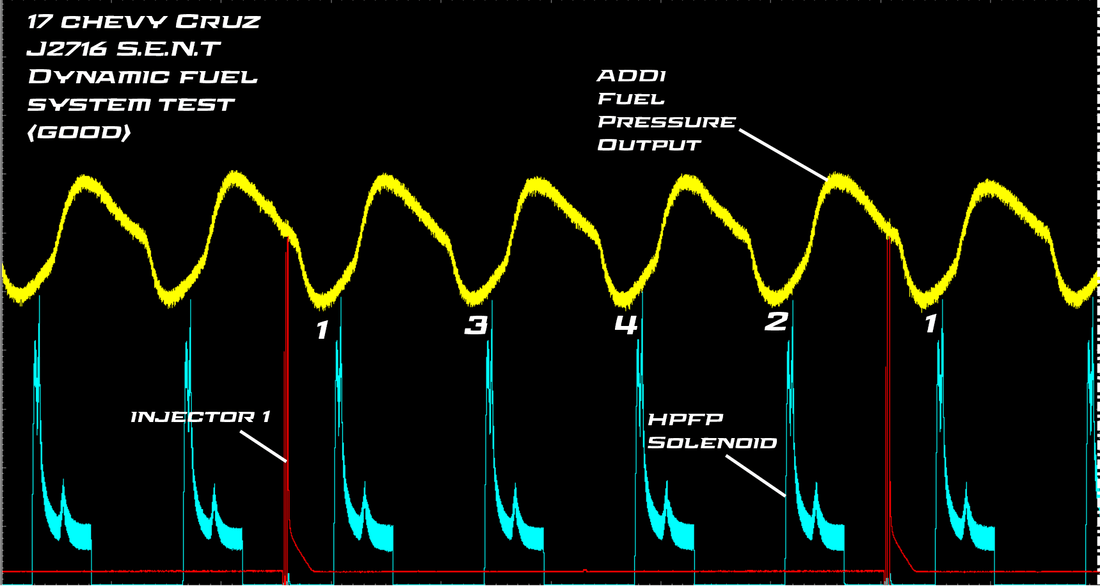

    ADDi Single Edge Nibble Transmission Decoded Injector drop signal (Good)

    Button

  • 2017 Chevy Cruz

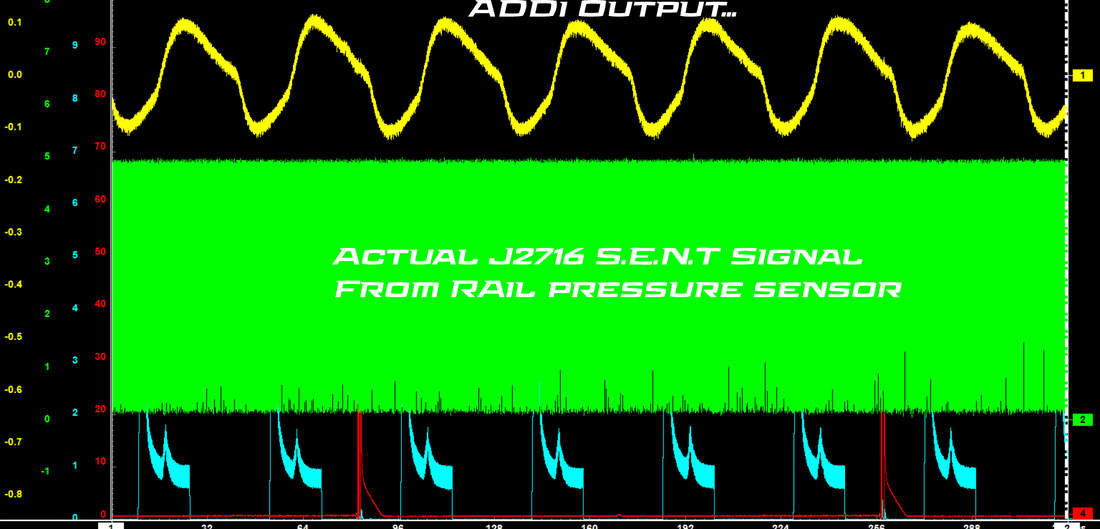

    Yellow: ADDi output S.E.N.T decoder, Green: actual signal from serial data rail pressure sensor.

    Button

  • 2017 Chevy Cruz

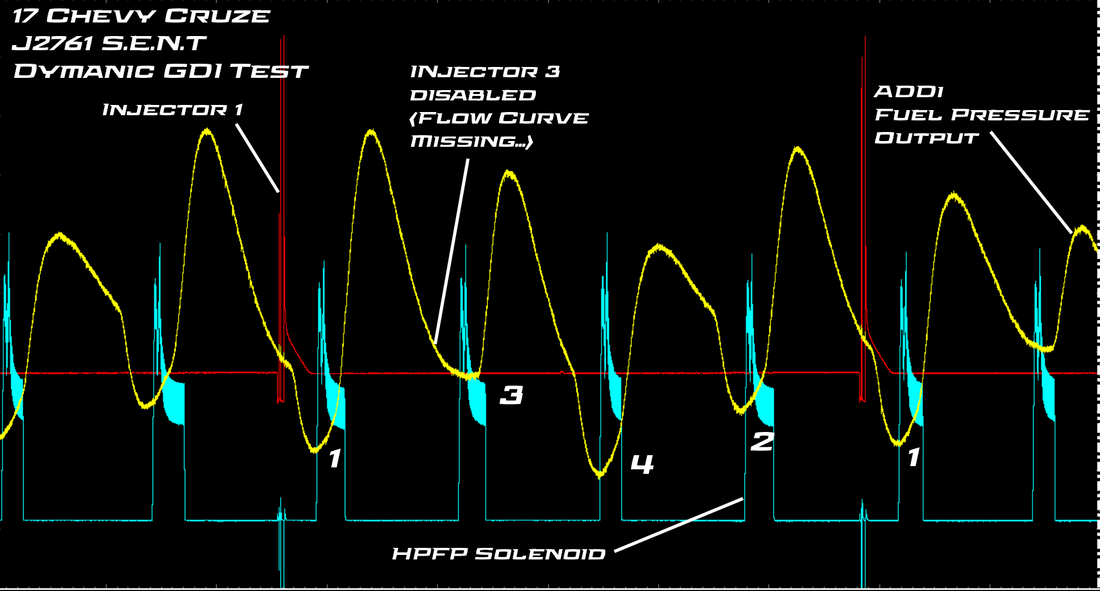

    ADDi S.E.N.T. decoded rail pressure dynamic injector drop with injector 3 unplugged

    Button

  • ADDi Frequency mode

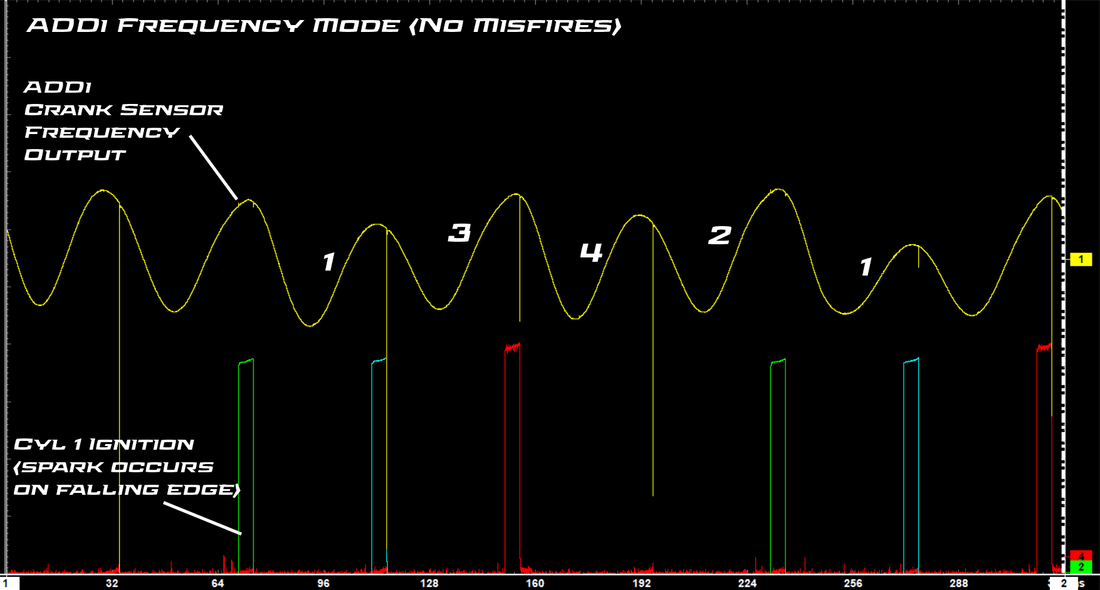

    No misfires

    Button

  • ADDi Frequency mode

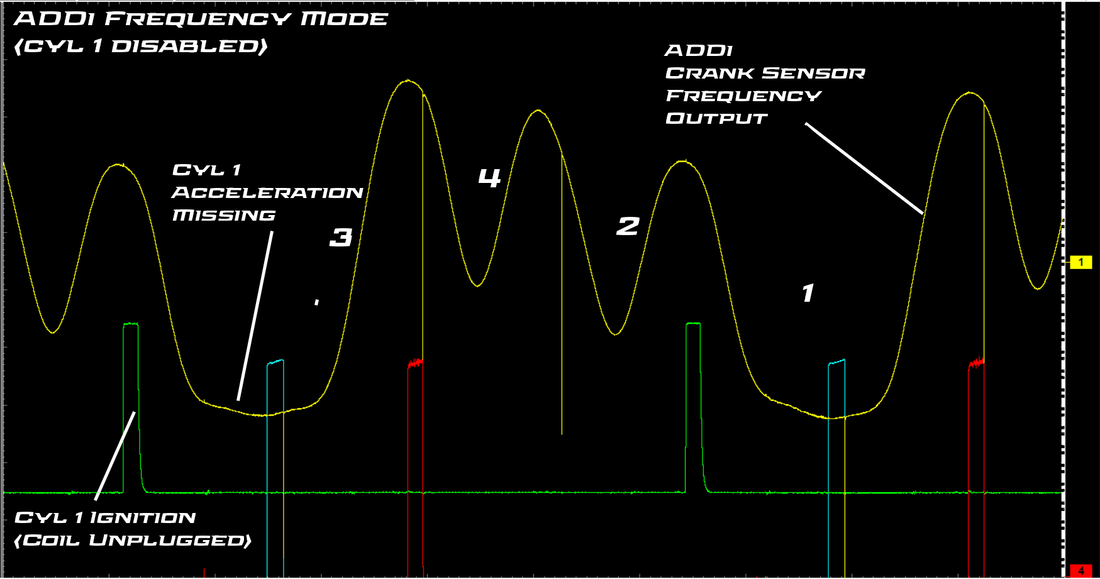

    Cylinder 1 coil unplugged

    Button

  • 2017 Ford F150 3.5 Ecoboost

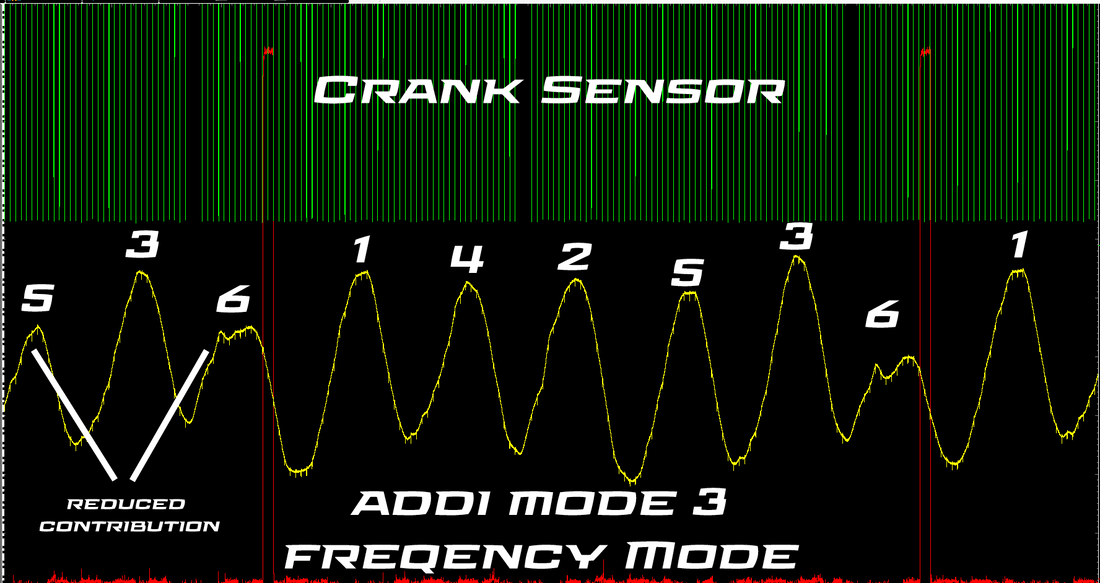

    Frequency Mode showing cyl6  and to a lesser degree, 5 has a lack of contribution.

    Button

  • Scan tool test from previous slide

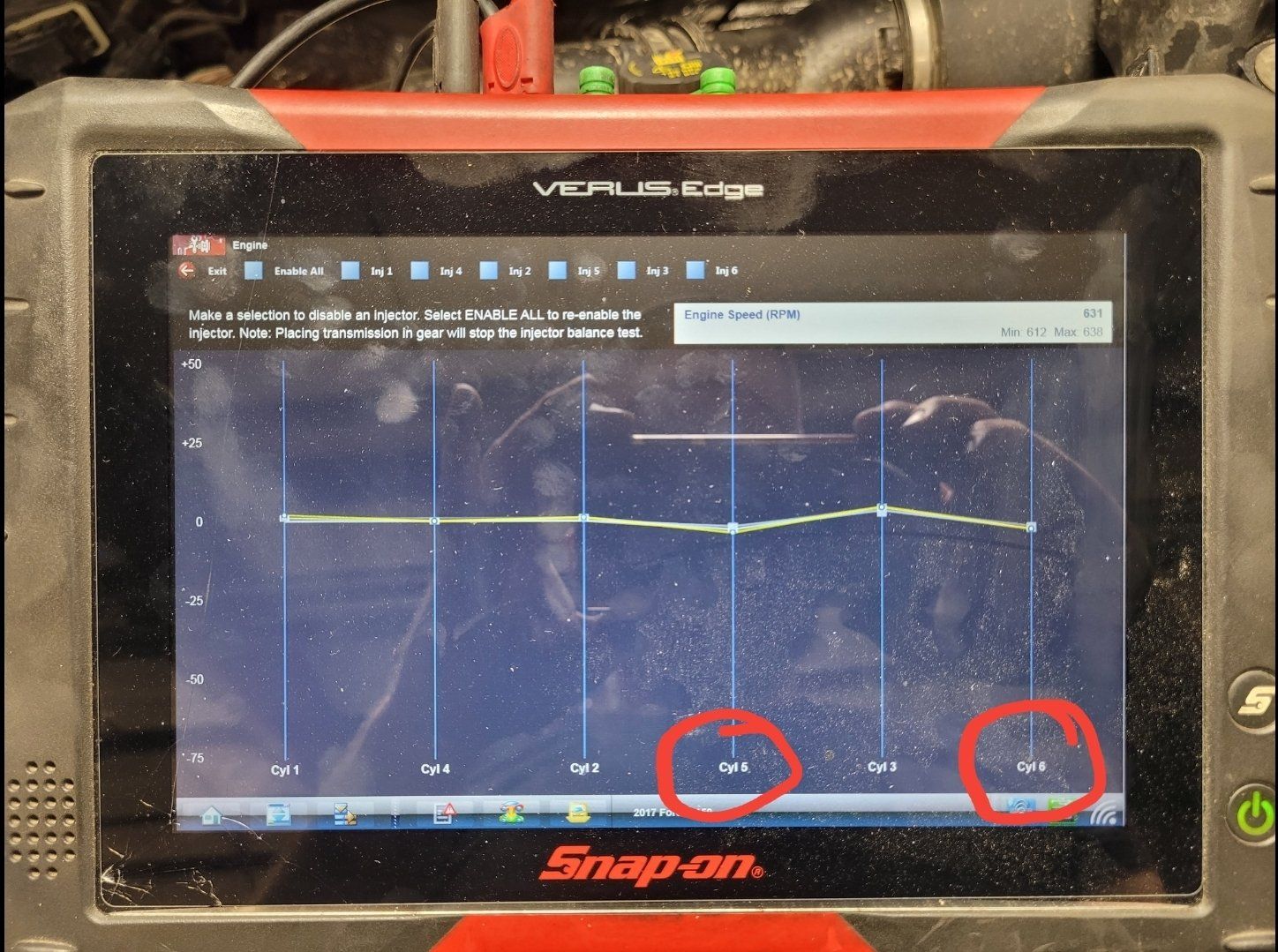

    Ford misfire graphic showing same lack of contribution revealed by ADDi frequency mode.

    Button

  • ADDi

    Write your caption here
    Button

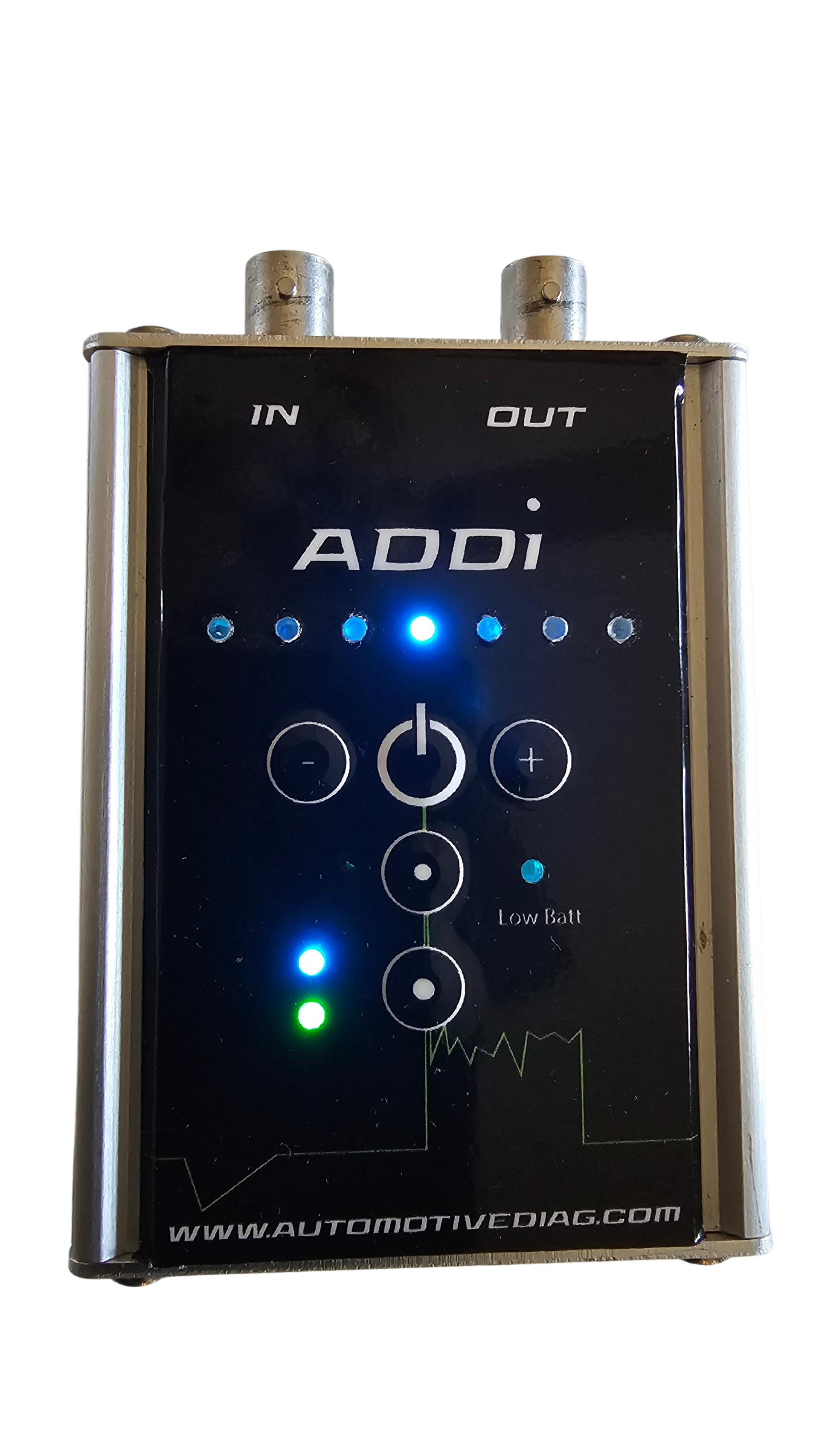

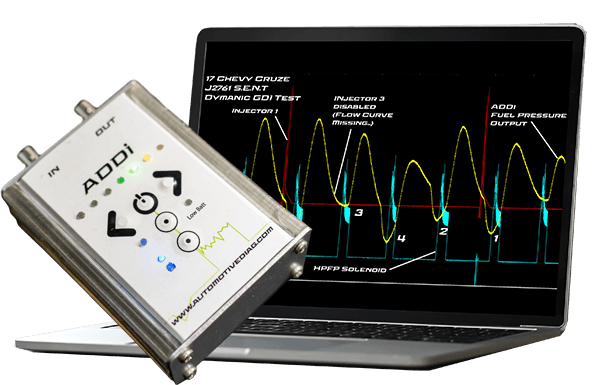

The ADDi is an automotive labscope test adapter that allows a technician to “tune in” to automotive fuel system and engine frequencies. This tuning process eliminates unwanted noise and permits amplification of desired signals. Though primarily designed for dynamic analysis of GDI high-pressure fuel systems, the ADDi can also be used to enhance practically any signal under the hood.


(Each ADDi is built by hand, please allow 4-6 weeks for shipping.)

Order now!

ADDi MODES

Tune Mode:

This mode is designed for dynamic GDI fuel system analysis. Our device “Tunes in” to specific automotive fuel system and engine frequencies, permitting adjustable amplification of the output signal to your scope.

J2716 SENT Decoder Mode:

This mode makes dynamic GDI fuel system testing possible on newer vehicles equipped with SENT  (Single Edge Nibble Transmission) sensors. Our device provides decoded J2716 SENT analog signal and allows tuned and amplified output to your scope.

Frequency Mode:

This feature allows virtually any labscope to perform arithmetic channel type tests, such as, using the crankshaft sensor to identify cylinder misfires with no setup of complex filters or functions. Our device provides a scaled and zoomed analog output of frequency signals, allowing relative comparison on your scope.
